ALPHACAM - Change Router Start Point

ALPHACAM - Change Router Start Point

ALPHACAM allows you to control the start point of the cutter. You may want to set this to a different position, depending on the shapes being processed.
To change the start point in ALPHACAM, follow the steps below:

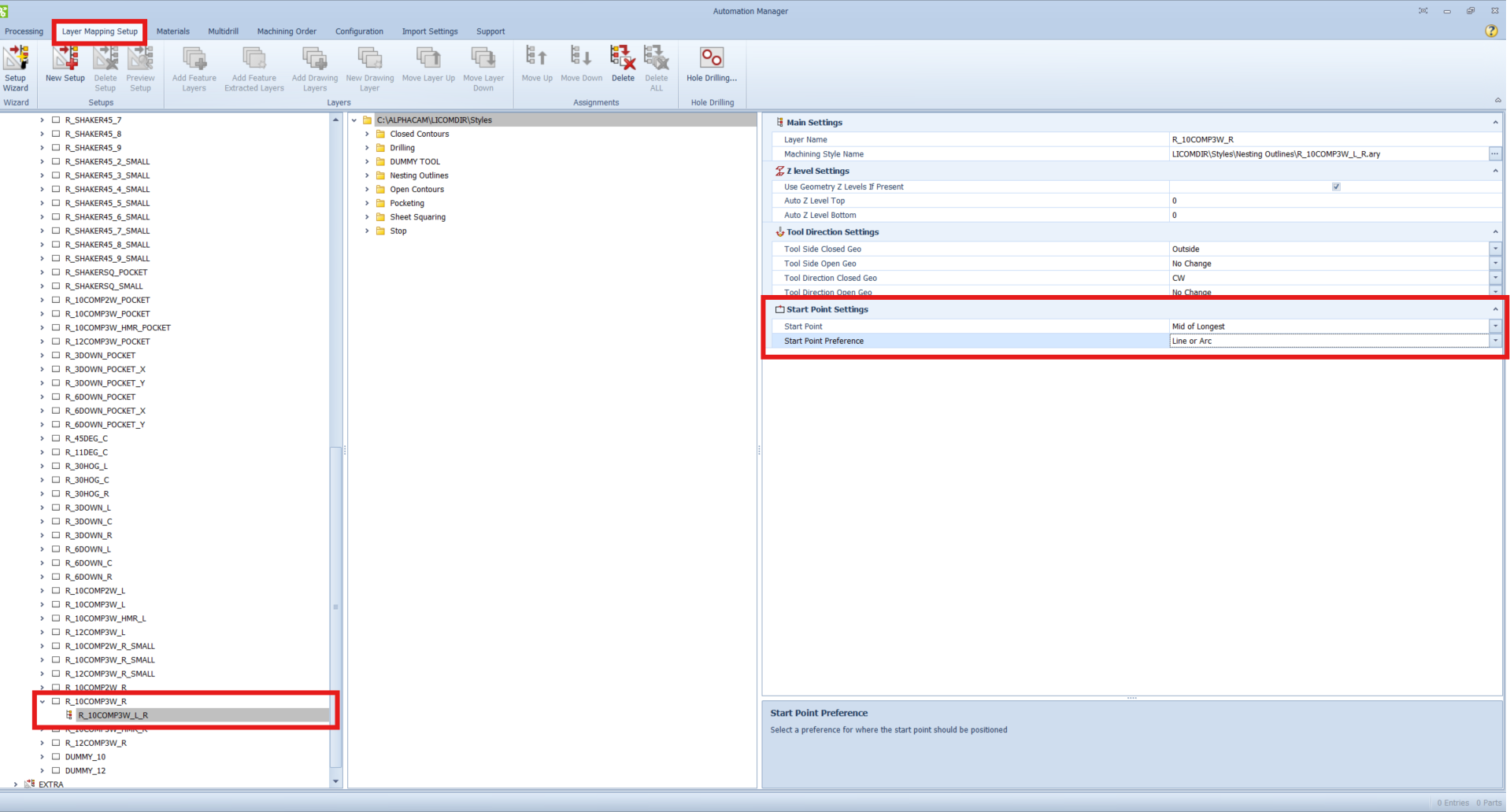

  1. Open Automation Manager
  2. Click on Layer Mapping Setup
  3. Select the layer you wish to modify
  4. Change the Start Point to the desired setting (eg. "Mid of Longest")



Please reach out to our Support Team if you're still having trouble.
