ALPHACAM - Checking Style Assignment Is Correct In Layer Mapping

ALPHACAM - Checking Style Assignment Is Correct In Layer Mapping

To verify if the layer mapping is using the correct style, follow these steps:

  1. Open Automation Manager.
  2. Click on the Layer Mapping Setup tab.
  3. In the Layer Mapping Setup, there are three types of layers:
    • RO_tool_L: An open contour.
    • R_TOOL_POCKET: A pocket.
    • R_TOOL_R: A closed contour cut.

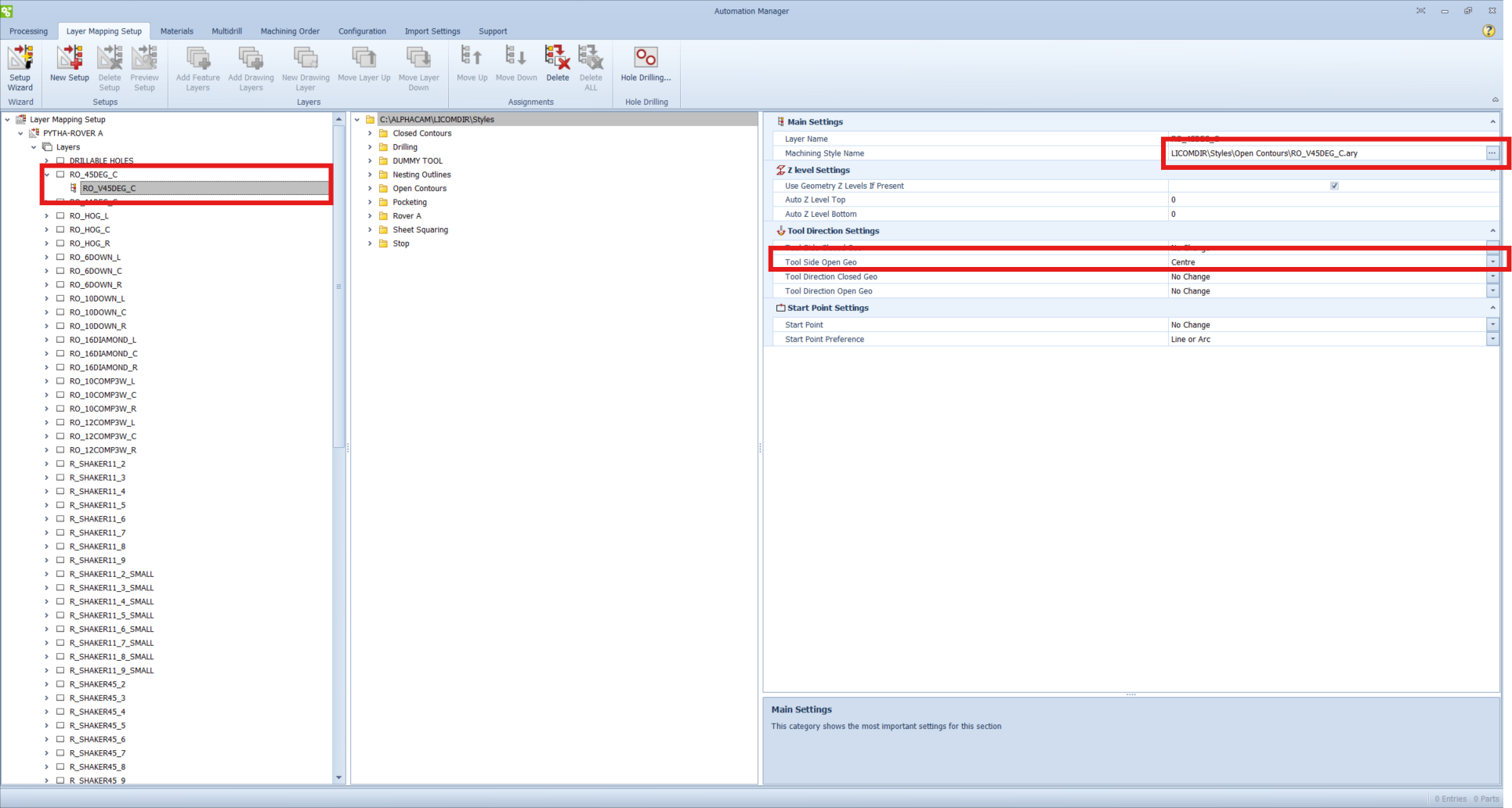

  4. Open the specific layer you want to check.
  5. Click on the Style Name.
  6. On the right-hand side, next to Machining Style Name, verify if the correct style is assigned to the layer.
