PYTHA Workshop - Straight edges appearing curved when exported

PYTHA Workshop - Straight edges appearing curved when exported

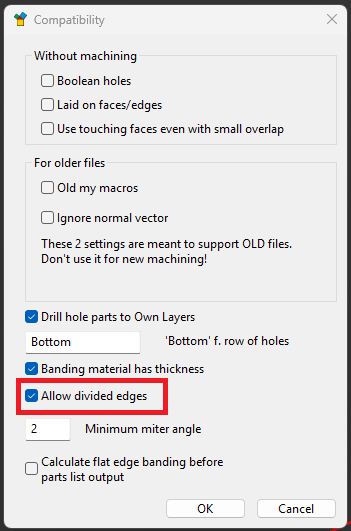

Sometimes non-rectangular parts being processed from PYTHA will be generated with curves on edges that should be straight. To rectify this, add extra points to your part edges using the PYTHA " Divide" tool:
  • Open Face Tools > Topology > Divide

  • Apply this to the straight edges of your part that are appearing as curves



  • Re-export your job
