PYTHA Workshop - Selecting your CAM export

PYTHA Workshop - Selecting your CAM export

With the introduction of Workshop, some export functions in PYTHA have been relocated. All machining exports are now done through the Workshop menu, including Analyzer.

To select your CAM export:
  • Open the Workshop menu

  • Click CNC Output > User layer

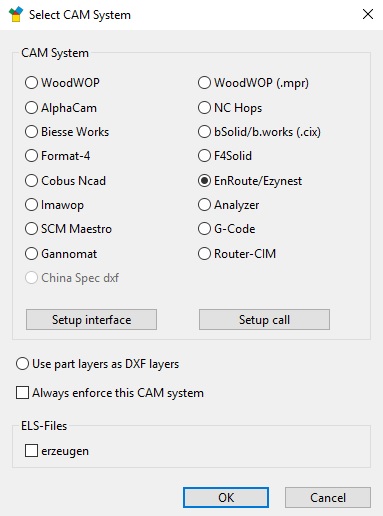

  • Select your desired export format and click OK (Note: only available CAM interfaces will be selectable)

  • Your currently active CAM export appear in CNC Output

  • To change to a different CAM export, click on your current CAM system and select another CAM export
  • To export your parts from PYTHA, click Export to CAM
