PYTHA V26 - PYTHA to Alphacam Export Settings

PYTHA V26 - PYTHA to Alphacam Export Settings

Below are the required settings before exporting from PYTHA to Alphacam.

Workshop > Settings > Machine Set Up

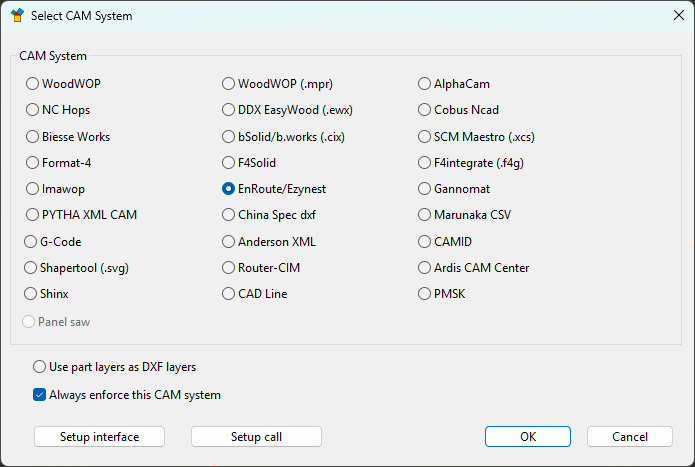

Select EnRoute/Ezynest

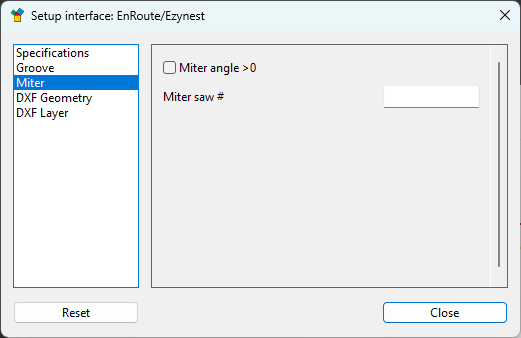

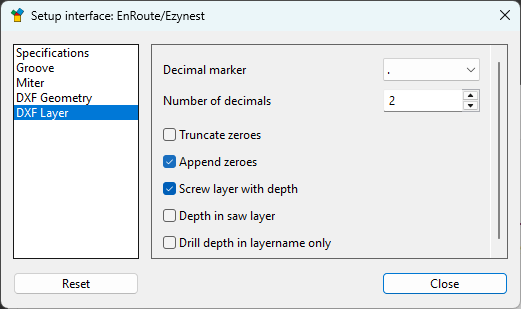

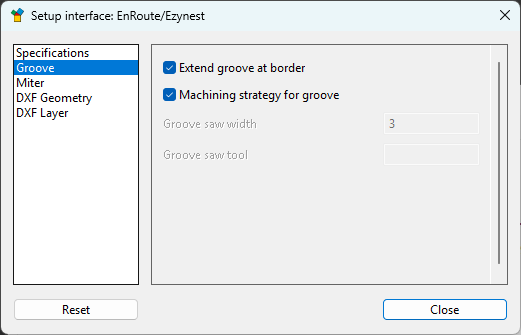

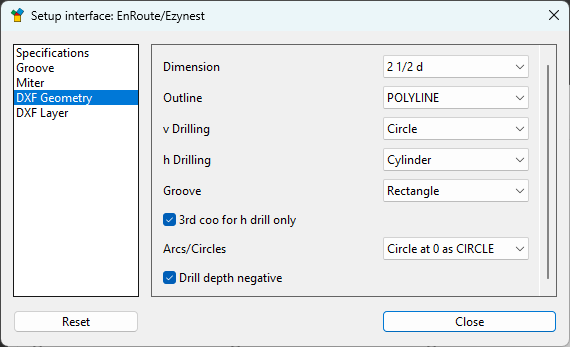

Next, go to Setup Interface









Next, in Rules, Filters select these settings,

Parts Filter

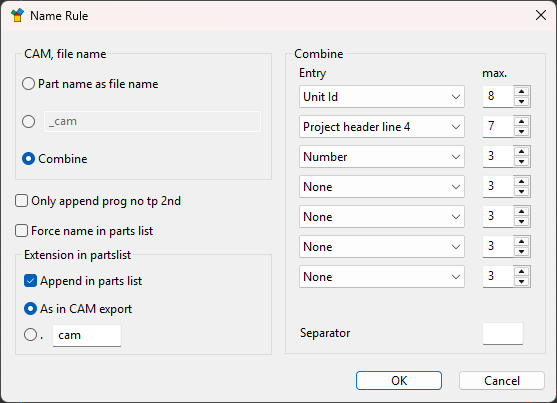

Name Rule



Rotate Rule

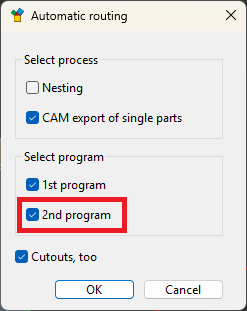

Router Rule

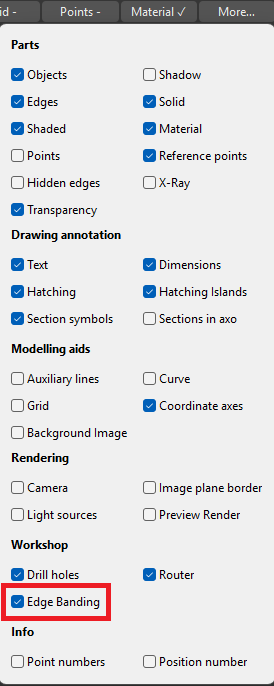

Finally, you should always ensure that Edge Banding visibility is turned on prior to exporting. Part label images will not display any edge banding if this is not selected when exporting.
