PYTHA V26 - Reverse Side Nesting Single Parts

PYTHA V26 - Reverse Side Nesting Single Parts


To perform a reverse side nesting operation on a part that is not required to be cut out, follow the steps outlined below.

In PYTHA, when exporting to CAM,

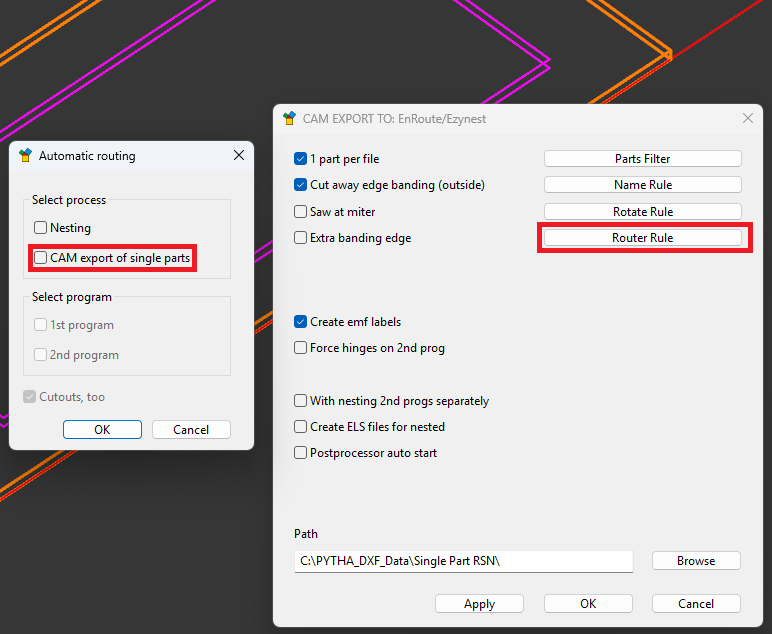

  1. In Router Rule, untick CAM export of single parts, this will untick everything and hit OK

  1. Finish exporting the job from PYTHA as normal.
  2. Run the Add Rev to Csv  in Alphacam.
  3. Import the Rev Csv files into Alphacam.

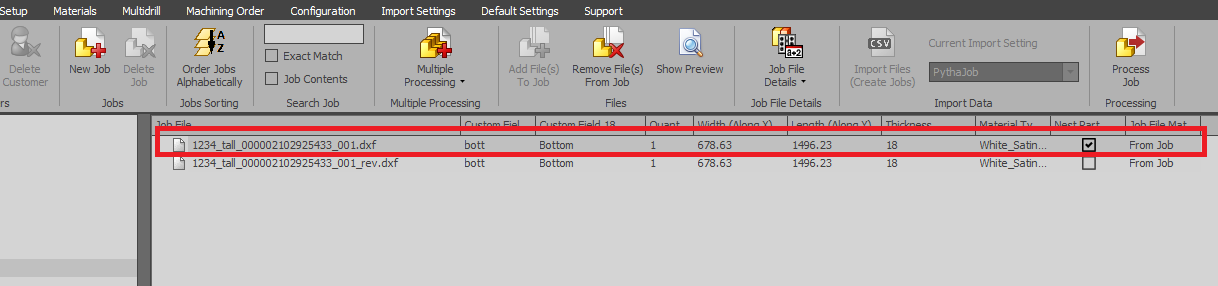

  4. Click on the primary job file in Automation Manager.

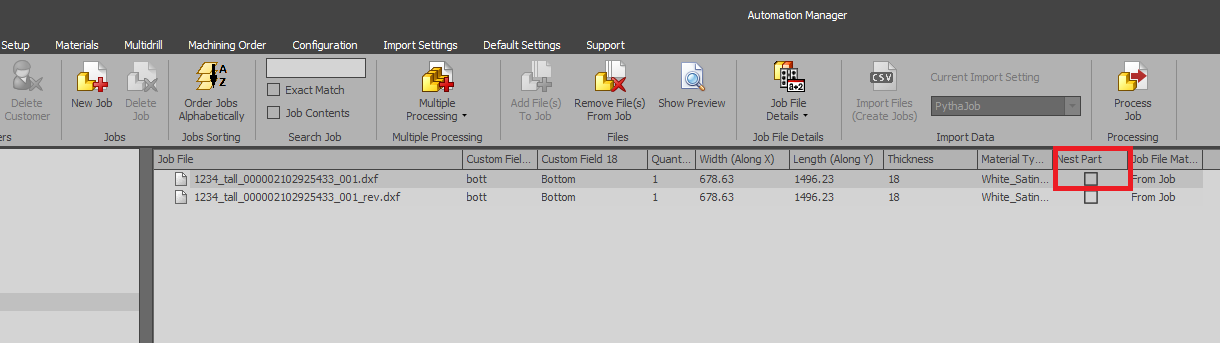

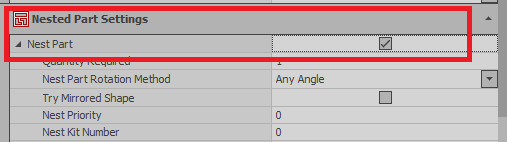

  1. In Nested Part Settings, tick off Nest Part
       On            Off

  1. This will tick off the part to be nested in Automation Manager.


  1. Process Job
  2. This will create two files of code.
  3. Place the part at the machines 0,0 and run one file per side.
