PYTHA V26 - Adding a Sum Total to the Parts List
How to add a sum total of materials to your Parts List.
- Create a new list
- Select the material to wish to sum the lengths of

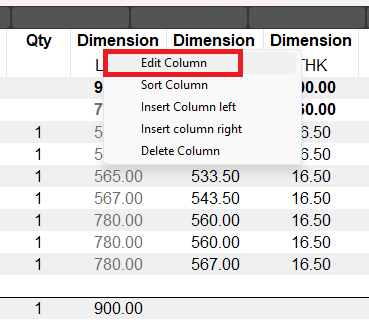

- Right click on the Dimension Length column and click Edit Column

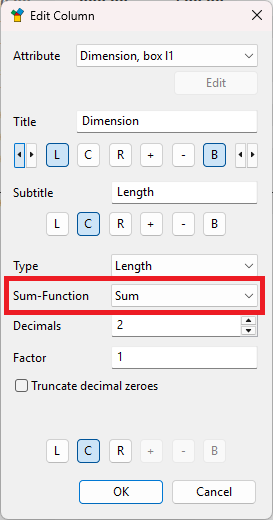

- In Sum-Function, click the drop down and choose Sum and click OK

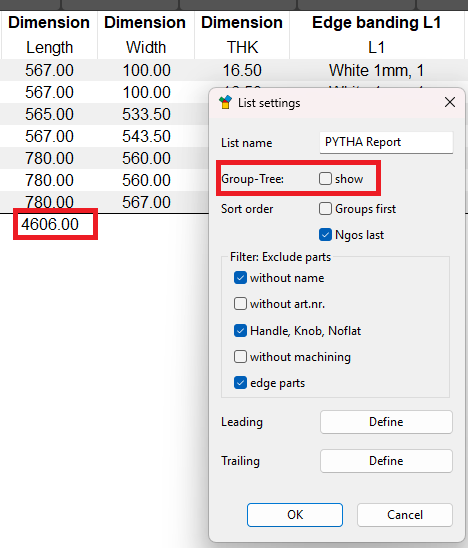

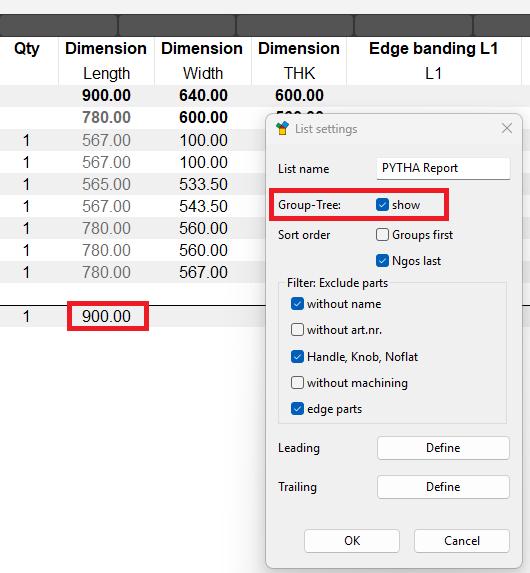

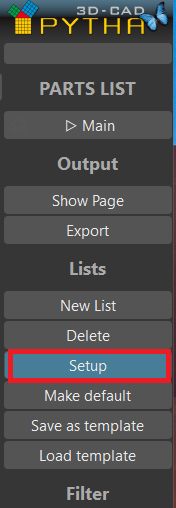

- Open Set up and in Group-Tree: Untick Show
- This will change it from summing the Group length the the parts length
- Save your new Parts List
