PYTHA V26 - Plotting & Clip Scene

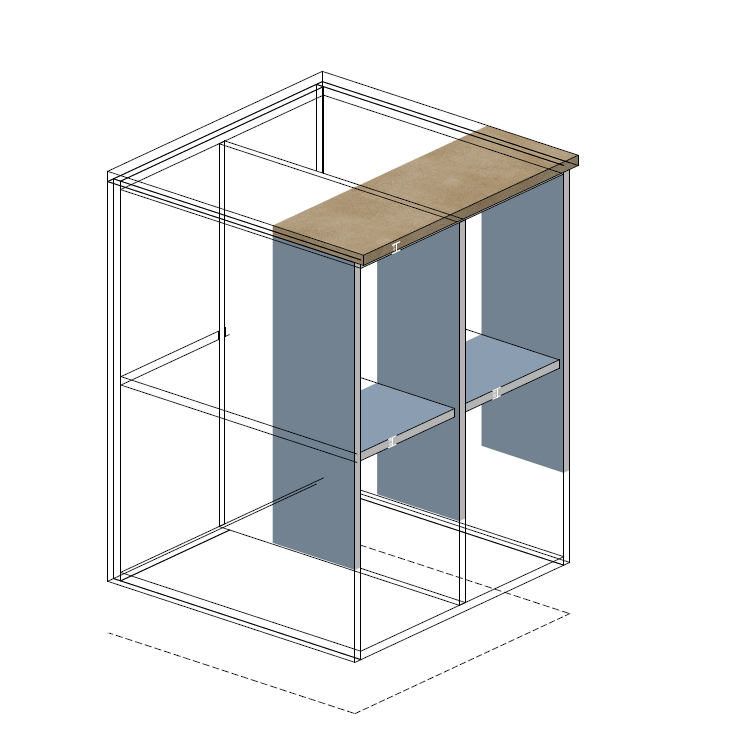

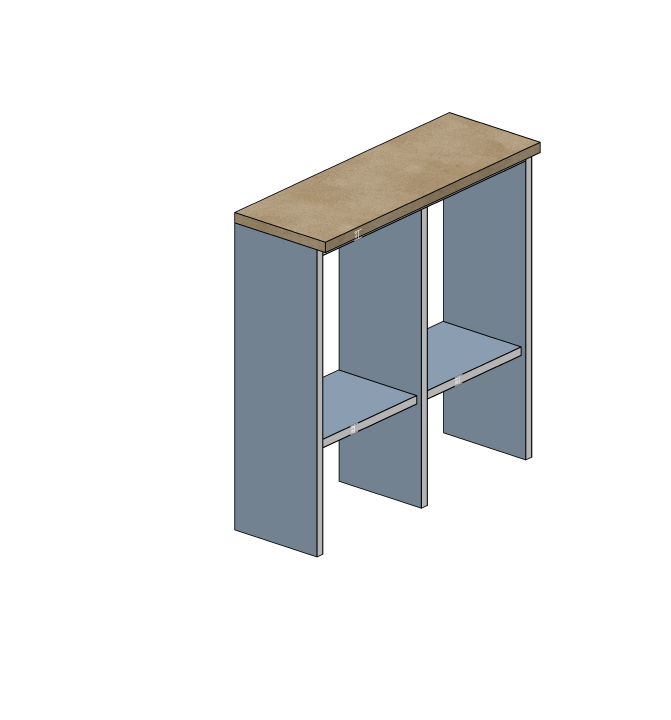

When using a clip scene in PYTHA for your plotting page, it's important to set up a few key settings to ensure the function works correctly. Using the clip scene when printing to PDF can often result in an outline of the clip scene remaining.

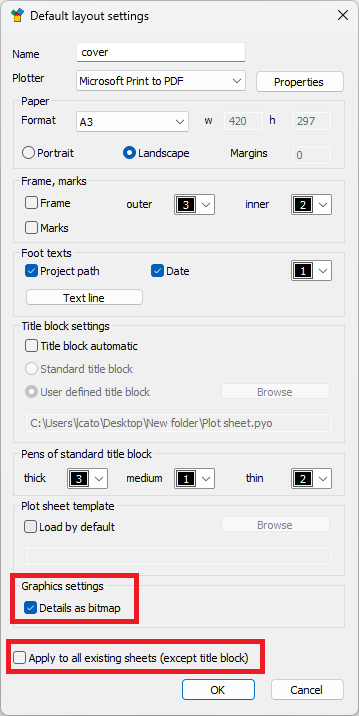

To avoid this, make sure that "Details as bitmap" is ticked. This is in PLOTTING>Page Setup>Default.

Apply this setting to existing Plot sheets by also selecting "Apply to all existing sheets"
