PYTHA - Plot Page Not Opening
Sometimes when opening the plot page in a new file, it may fail to load. One common cause of this issue is a missing or broken file path. When the software cannot locate the correct path, it prevents the plot page from opening as expected. If the Plot Page can still be opened in an previous file, this can easily be fixed. If not, please contact Support for further assistance in this.
In a previous PYTHA file;

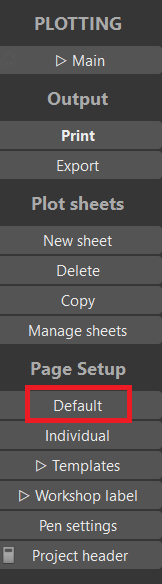

- Open Plotting > Default

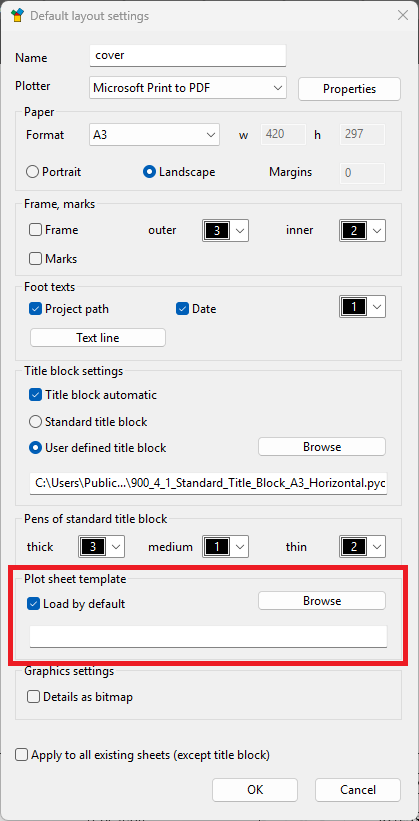

- Click on Browse
- Tick the box, Load by Default
- Re-select your Plot Sheet Template and click OK.
