In PYTHA the Project header allows you to easily get information to the title block, plot page, parts lists and drawing space. Using this function saves time by eliminating the need to type in the information multiple times. You can access the Project Header dialog through the Project Tree. In this dialog you can define the information for this project, e.g. customer name, job number etc.

To use this information entered in the Project Header, simply enter the corresponding $Line or $$Line ( e.g. $Line1, $$Line6) as 2D text or Text on Point. Anything that is entered in the corresponding field into the Project Header will be automatically substituted within the model.
  1. If the Project Tree is not displayed, open it by clicking the project tree function   on the icon bar.
  2. To access the Project Header, double click on the project name in the Project Tree.

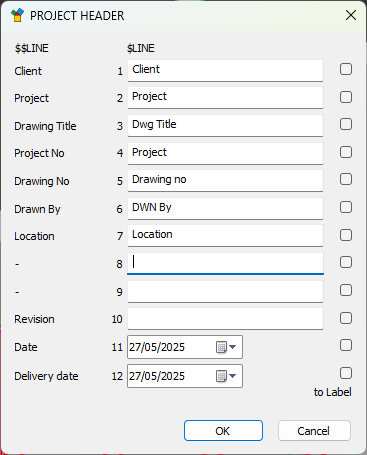

  1. Next, enter the required information for the project Header into the dialog box.
