PYTHA - V26 Drag & Drop Extend and Rotate

The latest .exe (2025-06-23), now allows users to separately control the Rotate and Extend function while they drag n drop a library item into the modelling space.

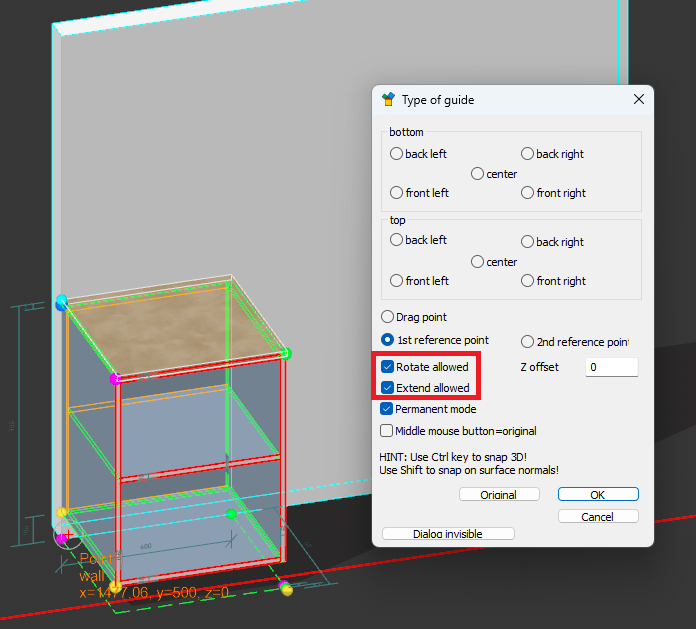

1.  Drag an item into the modelling space and select the variables.

2. Select the functions needed and drop into position.

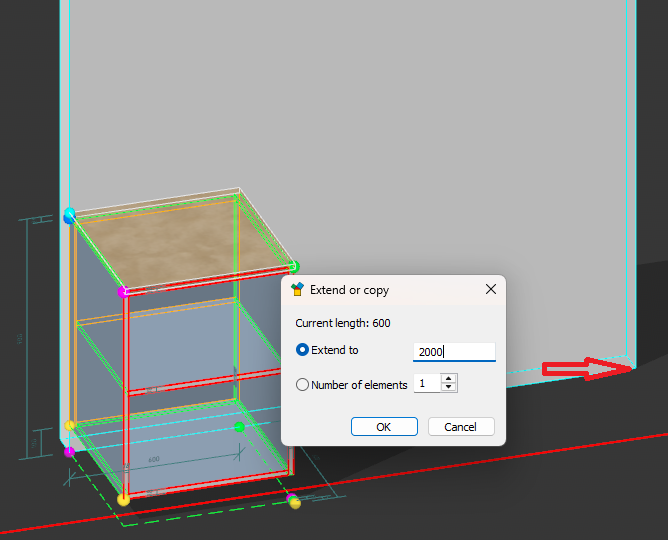

1. Click on the Point to Extend to, or enter a value into the dialog box

2. There is also the option to Copy the element.

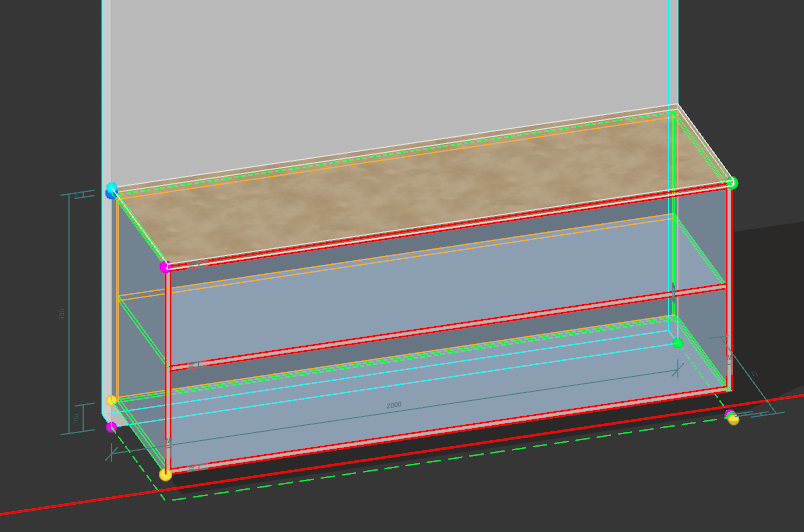

1. The item is now Extended during Drag and Drop
