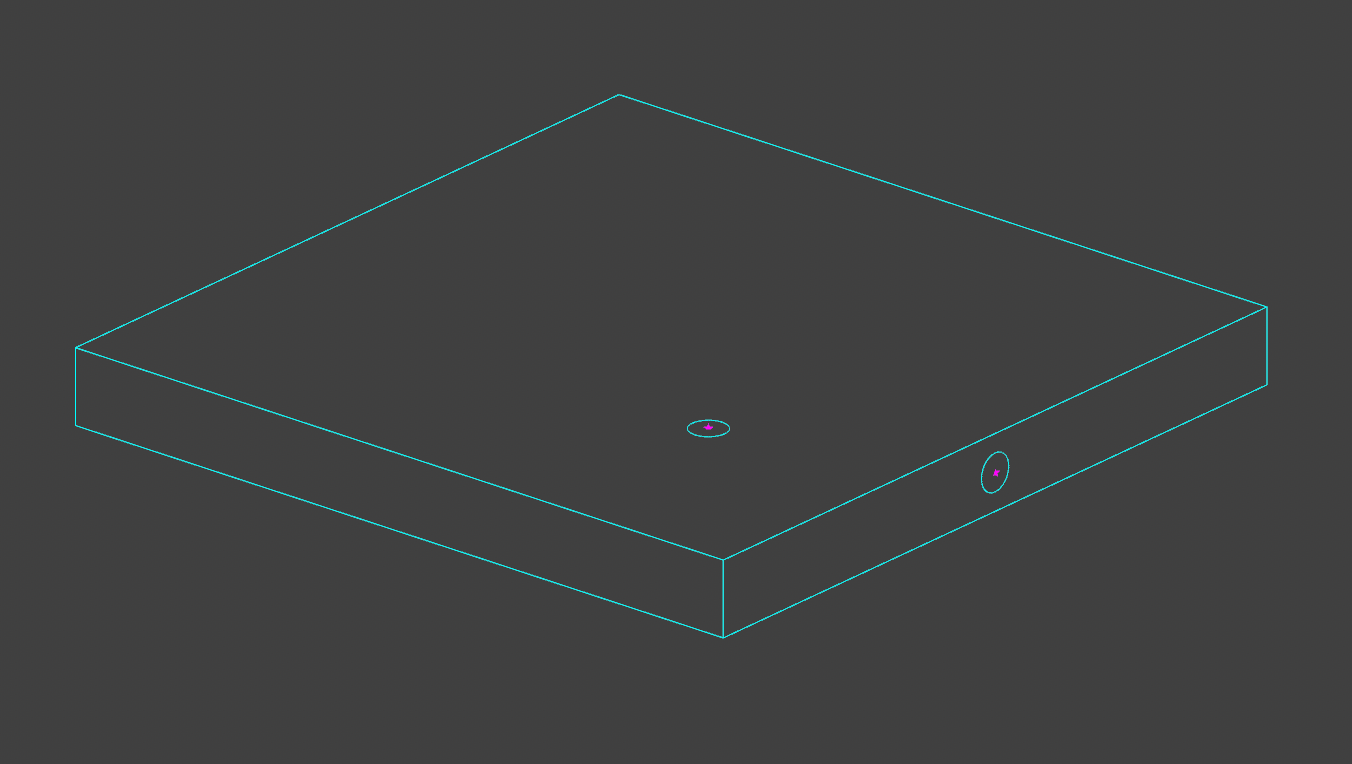

In PYTHA Workshop, the My Holes function allows for the creation and export of custom drilling.

To create Vertical or Horizontal bore holes:
  • Draw a Circular face on the surface or edge of the part you wish to drill - the diameter of the face determines the diameter of the bore hole

  • Turn the face into a bore hole - Workshop > My holes
  • Assign a Depth, Layer and Pen colour to your bore hole
  • Use Invert Direction to ensure drilling is in the correct direction - the My Hole arrow must point TOWARDS the direction of drilling

  • Click OK to create your bore hole
