PYTHA V26 - Smart Equalize

Please follow the below steps to use Smart Equalize.

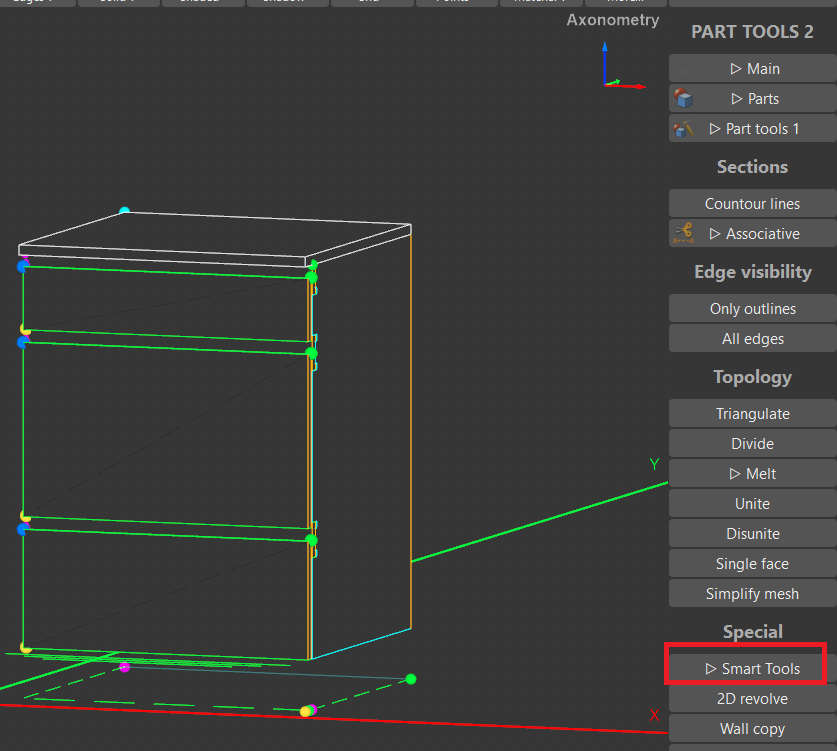

1. Smart Equalize is located in Part Tools 2 > Smart Tools > Smart Equalize.

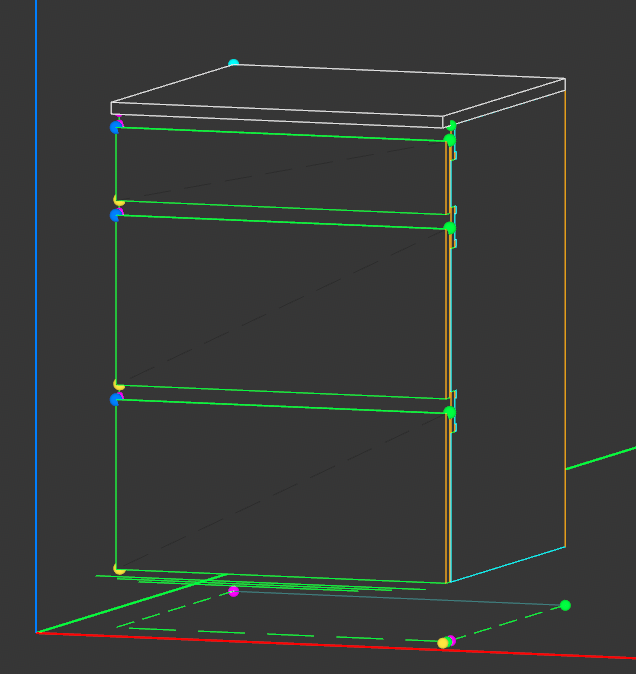

1. Select the entire cabinet and confirm.

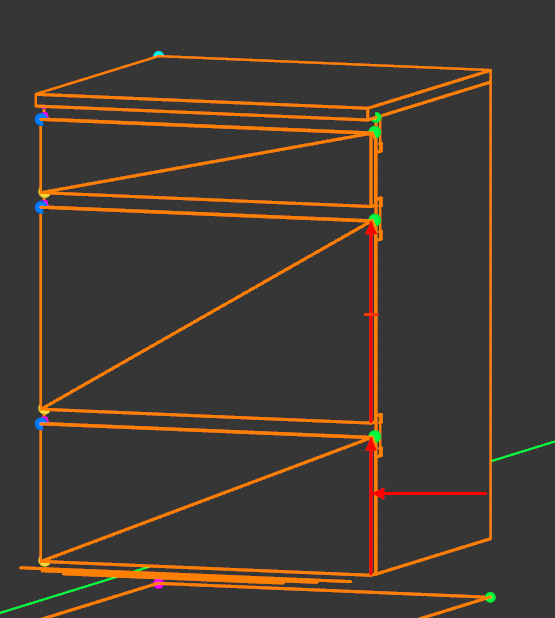

2. Pick the intervals to be adjusted and confirm.

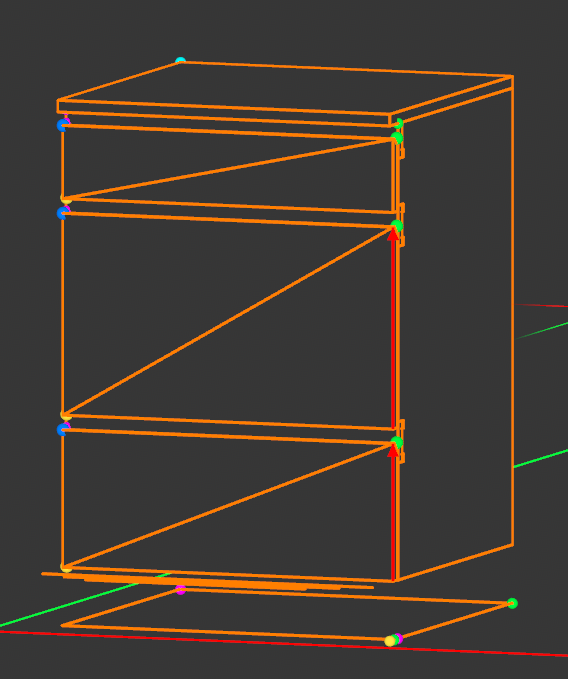

1. Pick point for the part to stretch through and confirm.




1. The cabinet has now equalized the selected parts of the cabinet.
