PYTHA - Copy Part Attributes

PYTHA - Copy Part Attributes

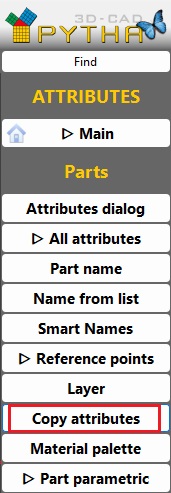

PYTHA has a function called COPY ATTRIBUTES that allows you to easily copy assigned attributes from one part to another. It can be found in the ATTRIBUTES menu in the PARTS section. It can be used to copy any Part Attribute from one part to another, including Part Name, Material, Layer Group and Pen.



**An important thing to note when using COPY ATTRIBUTES:

Copy ONLY the Part Attributes that you need to. Click TWICE on the "Select all" check box to DESELECT all options, before then picking the Attributes you need to copy. This will ensure certain Attributes that are important when Exporting to CAM are not duplicated. It is especially important that the UNIT ID is not copied from one part to another.
