PYTHA - Blind and Corner Cabinets Drill Holes Discrepancy

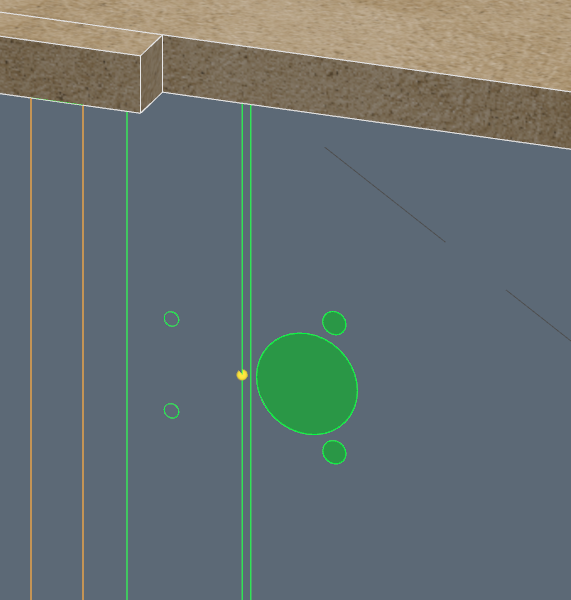

We've identified that there is an issue when using the Drill Holes function after rotating Blind and Corner Cabinets. The boreholes relating to the hinge are set to the face of the cabinetry (see the below image). This an ongoing issue that has been reported and awaiting a fix. We’ve taken interim steps that we hope will offer some relief in the meantime.
Library items that have been affected by this issue have been updated with My Holes in place and are available for download from the My 3D Shop.
- 013_Base_Corner_Cabinets IB_My_Holes
- 013_Base_Corner_Cabinets_Fingerpull IB_My_Holes
- 022_Tall_Corner_Cabinets IB_MyHoles
- 033_Overhead_Corner_Cabinets IB_My_Holes
