PYTHA - Hook Menu

PYTHA - Hook Menu


PYTHA's Hook menu allows quick and easy access to the library elements and a faster and more efficient workflow.

  1. Click on the Hook Icon  to show the Library dialog.

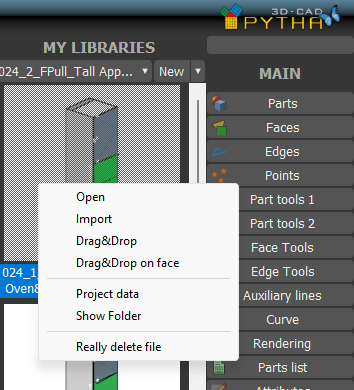

  2. Right click on the library item to view your options.


  1. Drag & Drop an item by simply holding the left mouse button and "dragging" it onto your graphics area.
  2. Note that Import and Drag & Drop does not include any plot sheets and parts lists.
  3. The Open function will close the existing project and load the entire file, including plot sheet and part list.
  4. Double clicking the library item will also Open the item.
