Adding your company logo to your PYTHA titleblock

Adding your company logo to your PYTHA titleblock

The following instructions detail how to add your company logo to your titleblock for plotting with PYTHA

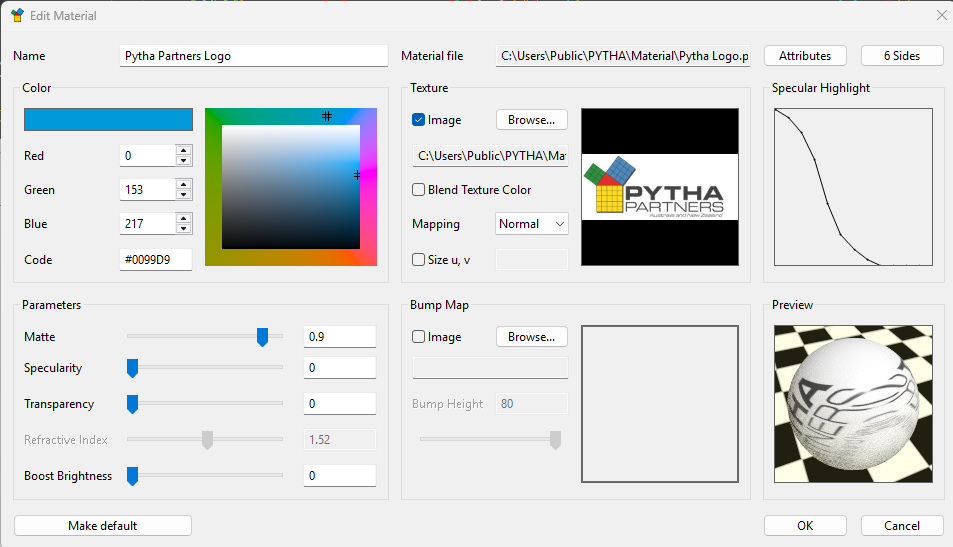

  • Create a material file of your company logo by assigning a .jpg of your logo as the Texture (your .jpg should be no larger than 20kb)

  • In your titleblock PYTHA file draw a Face the shape and size you want you logo to be - usually a rectangle
  • Assign your logo material to this face - ensure that you have Materials+ activated
  • Add Reference Points to correctly orientate your logo if required
  • If you don't want to see a box around your logo on your plot page use Edge Tools > Attributes > invisible to hide the edges of the face
  • Save your titleblock
NOTE: If you move the .jpg or .mat file for your logo, your logo will no longer appear on your titleblock. We recommend saving both to your C:\usr folder to ensure the file path remains constant.
